Description
Self-adjusting One Crimper For All!
“I am using this crimper kit to build a CNC control cabinet. The ferrules work well to protect the ends of the wires in the screw terminals used in the cabinet. The crimper is well made and automatically adjusts to crimp each size ferrule to the correct pressure. This is a well made tool I would recommend to a friend.” - Lloyd G.
Why Buy Our Ferrule Crimper Tool Kit?

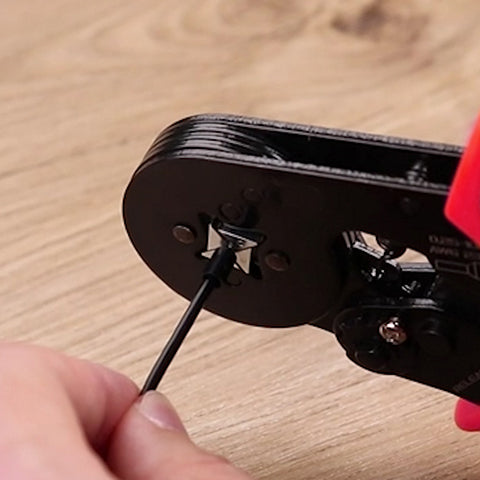

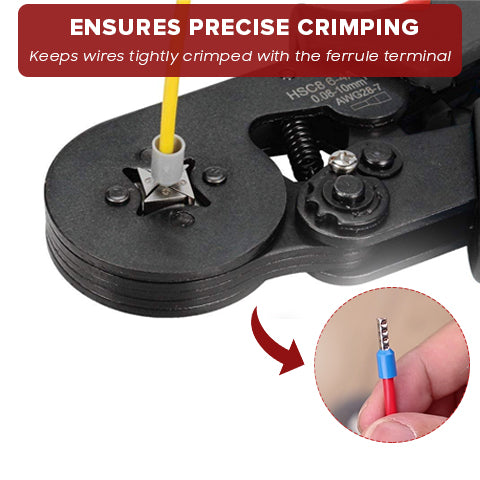

✅EASY TO USE: It comes with a complete set of 1800 pcs ferrule terminals and a ferrule crimping plier that has a crimping range of 0.08~10mm² to fit many different sizes of wires. Simply strip the wire to proper length and insert the wire into the ferrule terminal then press the handle and open the jaw, next put the ferrule terminal into the jaw and close slightly until the ratchet just engages in the end and you are done.

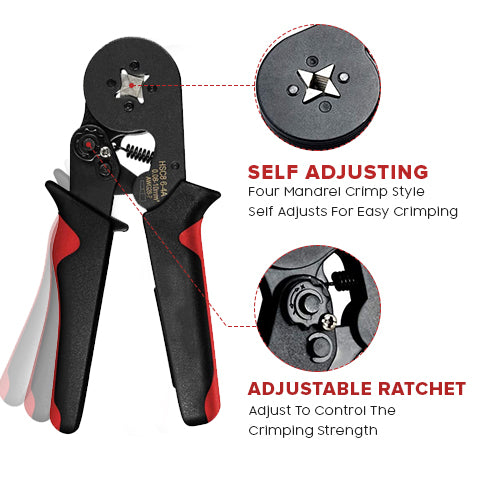

✅VERSATILE: Features a self-adjusting ratchet that improves accuracy and reliability when crimping. It also has a four mandrel (square) crimp style making it suitable for all kinds of equipment switches, batteries, cars and household repairs, and more.
✅ERGONOMIC: Made of copper alloy and has an ergonomic handle design that provides improved gripping power and comfort during use. Ideal for crimping insulated and non-insulated wire ferrules.
📋Frequently Asked Questions:
Q: Does this tool strip wires?
A: No, it doesn’t strip wires. It can only be used to crimp ferrules on the wire.
Q: Will this crimp 12 and 14 gauge wire?
A: Yes

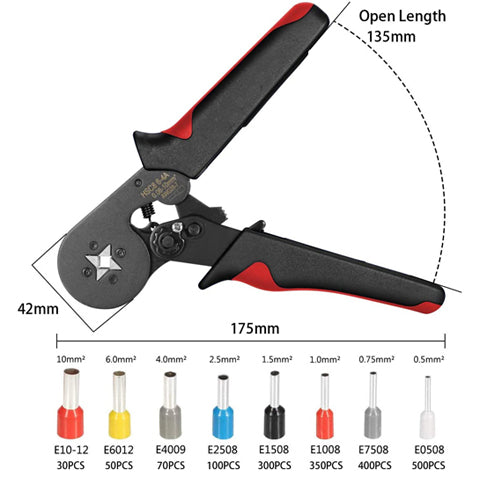

Specifications:
- Material: Nylon & Copper Alloy
- Crimping Range: 0.08~10mm²
- Item Weight: 1.7 pounds
- Package Dimensions: 9.8 x 5.3 x 2.3 inches
Package Inclusions:
- 1x Ferrule Crimper Plier

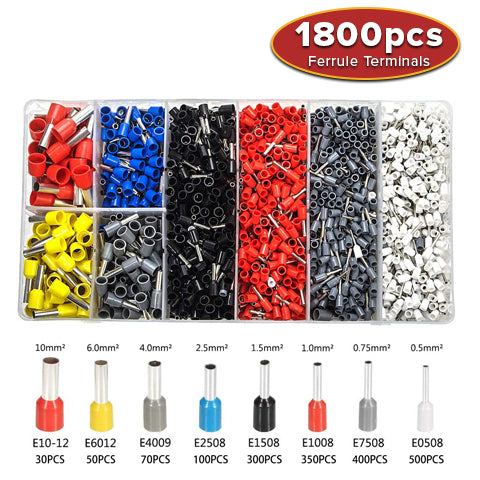

- 1800x Ferrule Terminals
-
500x E0508 22AWG (White); L:14, F:8, B:6, W:2.6, C:1.0, D:1.3
-
400x E7508 20AWG (Gray); L:14.6, F:8, B:6.4, W:2.8, C:1.2, D:1.5
-
350x E1008 18AWG (Red); L:14.6, F:8, B:6.4, W:3, C:1.4, D:1.7
-
300x E1508 16AWG (Black); E1508 16AWG (Black)
-
100x E2508 14AWG (Blue); L:15.2, F:8, B:7.2, W:4, C:2.3, D:2.6
-
70x E4009 12AWG (Gray); L:16.5, F:9, B:7.5, W:4.4, C:2.8, D:3.2
-
50x E6012 10AWG (Yellow); L:20, F:12, B:8, W:6.3, C:3.5, D:3.9
-
30x E10-12 8AWG (Red); L:21.5, F:12, B:9.5, W:7.6, C:4.5, D:4.9
